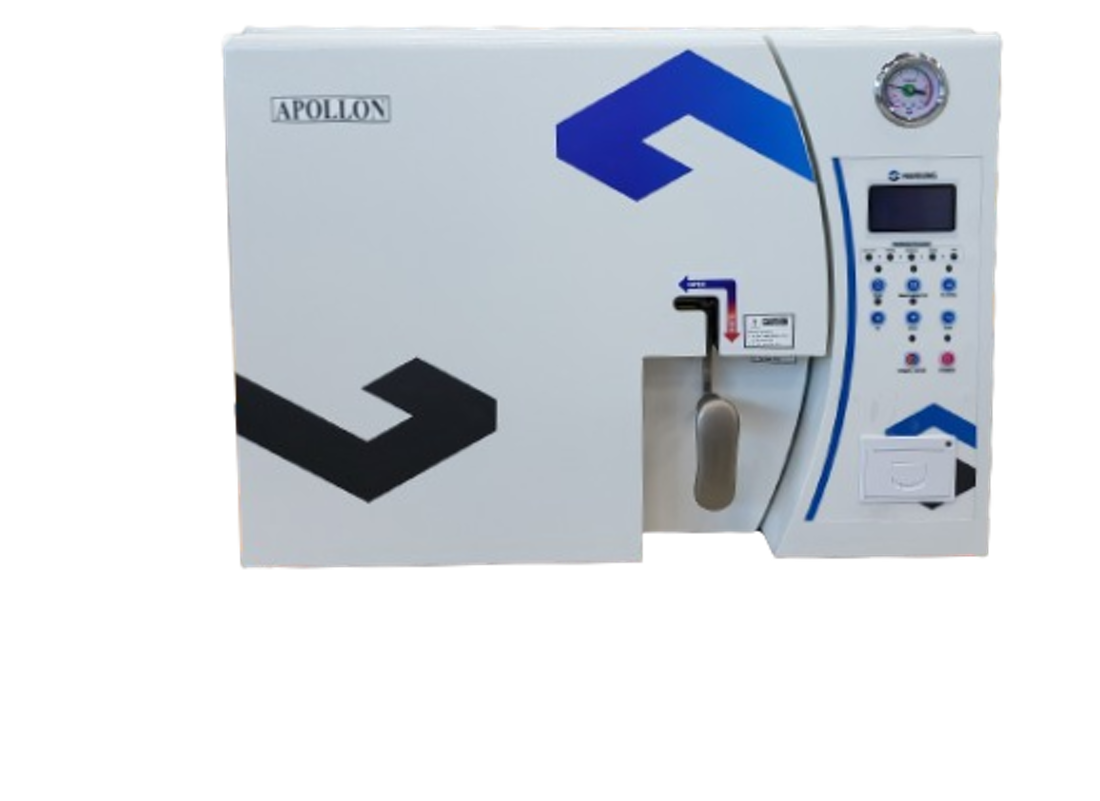

The APOLLON 2318V is a medical equipment that sterilizes microorganisms such as bacteria, fungi, and viruses using steam at high temperatures of 121℃~134℃ and high pressures of 1.0 bar~2.2 bar.
This is medical equipment suitable for sterilizing instruments, syringes, clothing, gloves, and culture bottles and flasks used in hospitals.
The APOLLON 2318V is a class B high-pressure steam sterilizer designed to sterilize all types of instruments according to the EN 13060 guidelines.
B-type high pressure steam sterilizer
Horizontal tabletop
Circular chamber made of stainless steel 304L/306L material
User selectable 4 sterilization modes (packaged, unpackaged, rubber, liquid)
Bowie Dick and vacuum test program functions
Automatic temperature control
Sterilization information displayed on LCD screen
Pre-vacuum sterilization method using vacuum pump
Equipped with thermal transfer printer
Sterilization process display
Display of distilled water quantity in water tank
User setting of distilled water quantity for each sterilization mode
Safety door lock: Door interlocking system installed to prevent door from being opened during sterilization
Sterilization processing can be stopped at any time
Buzzer alarm when sterilization is completed
Safety device installed to prevent overtemperature and overpressure
Automatic power off 1 hour after sterilization is completed
High-density silicone gasket with excellent sealing and airtightness and heat and pressure resistance.
Equipped with an analog pressure gauge to check the pressure inside the chamber.
Over Current CUT-OFF: Electrical Leakage Breaker.
DIMENSION | 600(W) X 670(L) X 430(H)mm |
Chamber Capacity | 18 Liter |
Chamber Dimension | Ø240 x 400 mm |
Chamber shape & Material | Roud type & stainless stee |
Capacity Reservoir | 4.5L |
Electric Power / Frequency | AC 220V~230V, 50/60Hz |
Power Consumption | 2.6KW |
Sterilization Temperature | 121°C (1.2 bar) ~ 134°C (2.2 bar) |
Vacuum Pump | OIL-Less Diaphragm |
Sound Level | < 75dB |
Sterilization Time | 1 ~ 99 (Min.) |
Drying Time | 1 ~ 99 (Min.) |
Vacuum Value | 550mmHg (international Spec.) |
Control System | Microprocessor |
Drying Method | Internal, External Heater with Vacuum |
Weight | 65Kg |
Safety Function | Safety valve, Overcurrent Protection (NFB), Thermostat : Internal & External Heater Overheating protection Chamber Overheating protection, Auto Door Locking System |
Built -In Thermal Printer |
Bluetooth communication device with PC |
SD Card Saving system |
Used distilled water discharge system |
