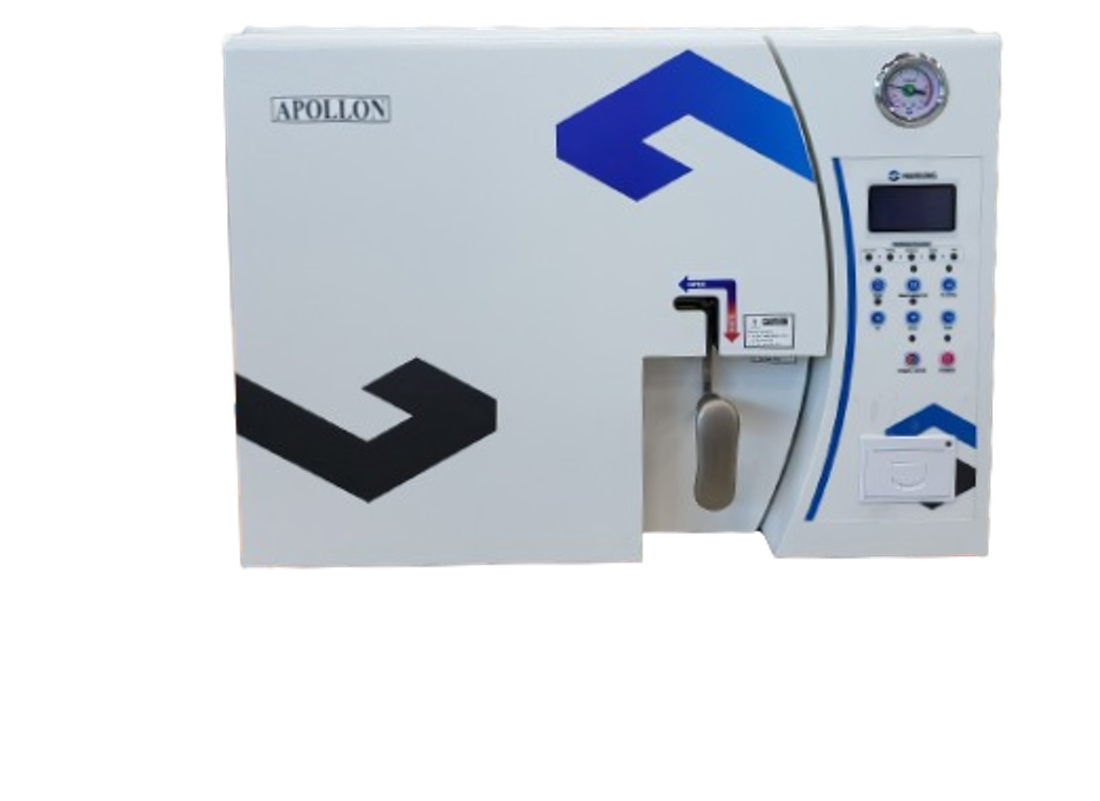

APOLLON 2322V

INTRODUCE

The APOLLON 2322V is a medical equipment that sterilizes microorganisms such as bacteria, fungi, and viruses using steam at high temperatures of 121℃~134℃ and high pressures of 1.0 bar~2.2 bar.
This is medical equipment suitable for sterilizing instruments, syringes, clothing, gloves, and culture bottles and flasks used in hospitals.
The APOLLON 2322V is a class B high-pressure steam sterilizer designed to sterilize all types of instruments according to the EN 13060 guidelines.

이미지 없음

TECHNICAL FEATURE

 B-type high pressure steam sterilizer
 Horizontal tabletop
 Circular chamber made of stainless steel 304L/306L material
 User selectable 4 sterilization modes (packaged, unpackaged, rubber, liquid)
 Bowie Dick and vacuum test program functions
 Automatic temperature control
 Sterilization information displayed on LCD screen
 Pre-vacuum sterilization method using vacuum pump
 Equipped with thermal transfer printer
 Sterilization process display
 Display of distilled water quantity in water tank
 User setting of distilled water quantity for each sterilization mode
 Safety door lock: Door interlocking system installed to prevent door from being opened during sterilization
 Sterilization processing can be stopped at any time
 Buzzer alarm when sterilization is completed
 Safety device installed to prevent overtemperature and overpressure
 Automatic power off 1 hour after sterilization is completed
 High-density silicone gasket with excellent sealing and airtightness and heat and pressure resistance.
 Equipped with an analog pressure gauge to check the pressure inside the chamber.
 Over Current CUT-OFF: Electrical Leakage Breaker.

SPECIFICATION


DIMENSION 600(W) X 670(L) X 430(H)mm
Chamber Capacity 22 Liter
 Chamber Dimension  Ø270 x 385(L) mm
 Chamber shape & Material Roud type & stainless stee
 Capacity Reservoir  4.5L
 Electric Power / FrequencyAC 220V~230V, 50/60Hz
Power Consumption 2.6KW
 Sterilization Temperature121°C (1.2 bar) ~ 134°C (2.2 bar)
 Vacuum PumpOIL-Less Diaphragm
Sound Level < 75dB
Sterilization Time 1 ~ 99 (Min.)
 Drying Time 1 ~ 99 (Min.)
 Vacuum Value 550mmHg (international Spec.)
 Control System Microprocessor
 Drying MethodInternal, External Heater with Vacuum
 Weight70Kg
 Safety Function Safety valve, Overcurrent Protection (NFB), Thermostat : Internal & External Heater
Overheating protection Chamber Overheating protection, Auto Door Locking System
확대

Option

Built -In Thermal Printer
 Bluetooth communication device with PC
 SD Card Saving system
Used distilled water discharge system
